Aerial surveys are often discussed in terms of accuracy, point density or sensor choice. These factors matter, but they do not determine how long a project takes to complete or what the acquisition will cost. A major contributor to both duration and cost is the amount of flying required to execute the project. Operating an aircraft is expensive, and minimizing the number of required flight hours is an obvious goal for any survey. One way to achieve this is by maximizing the time spent collecting usable data and reducing the time spent on everything else.
This article outlines a simple and transparent way to quantify survey efficiency by separating flight time into active and passive components. The goal is to provide a practical model that helps estimate project duration, compare platforms and understand where operational overhead originates.

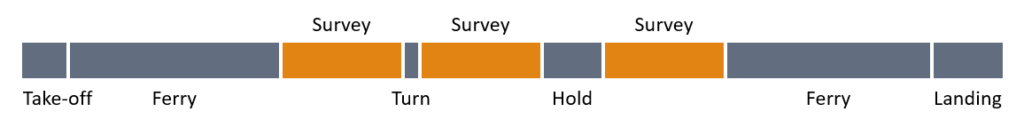

Active vs Passive Aircraft Time
During a typical survey flight, there will always be periods where the aircraft is not collecting usable data, even though it is still engaged in the mission. This passive time is unavoidable, but its magnitude varies significantly depending on the survey platform, the environment, operational restrictions and planning decisions.
Active Time
- Flight actively collecting data along survey lines
- Repetition of flight segments affected by defects or gaps
- Collection of data for calibration purposes
Passive Time
- Ferry flights to and from the project area
- Repositioning between individual blocks of the project
- Turnaround time at the end of flight lines
- Holding patterns, for example waiting for airspace clearance
- Waiting for suitable survey conditions such as GNSS convergence or weather improvement
- Pre-flight and post-flight operations with running engines
Efficiency
By comparing the ratio of productive time to total aircraft time, we can compute the overall efficiency of a survey flight:
An efficiency of 0.7 indicates that 70 percent of aircraft time contributes to collecting usable data. An efficiency of 0.3 indicates that most of the mission time is overhead.
Where Passive Time Accumulates
Passive time is rarely a single identifiable block. It is the sum of many small transitions and delays that occur throughout a mission. Understanding these components makes it easier to identify where improvements are possible and where constraints simply need to be accounted for.
Ferry and Transit
Most surveys require the aircraft to travel from an operational base to the project area. This transit segment can be used to bring the survey equipment online, but it does not contribute usable data. The same distance must be covered again at the end of the flight, which means transit time needs to be considered throughout planning. Aircraft with longer endurance can reduce the number of return trips and increase the amount of usable time within the project area.
Turns and Flight Line Positioning
After completing a flight line, the aircraft must reposition to approach the next line cleanly. The order in which lines are flown may be determined by proximity, but it can also be influenced by weather, airspace restrictions or other operational factors. A typical fixed wing aircraft requires several minutes, often around four to five, to transition from one adjacent line to the next. Helicopters can usually reposition more quickly, but the time still accumulates over the course of a full mission.
Ground Operations
Pre-flight preparation usually includes powering and checking the survey equipment. Ideally this is done using a ground power unit. If one is not available, the aircraft may need to run its engines to supply sufficient power. Ground movements such as taxiing before takeoff or after landing also contribute to passive time. These steps are necessary and require engines to be running, but they do not produce survey output and therefore need to be included in the overall efficiency calculation.
Waiting and Holds
Some delays are outside the operator’s control. Air traffic control may impose holds on the ground or in the air, and survey operations may need to pause while waiting for suitable GNSS conditions or for weather to clear. These waiting periods contribute directly to passive time. Helicopters have a slight advantage in such situations because they can often land temporarily at a nearby safe location rather than remaining airborne while waiting.
Actions That Reduce Passive Time
Passive time cannot be eliminated, but careful planning can reduce it significantly. Most improvements come from decisions made before the aircraft leaves the ground. Focusing on a few key areas can improve overall efficiency.
Choose a Strategic Operational Base
Selecting the right operational base is one of the most effective ways to reduce unnecessary transit time. When stable weather is expected for a specific project area, it is often worth moving operations to an airport that is geographically close to the site. This shortens ferry flights and increases the amount of usable time within the survey block. When weather conditions are uncertain, it can be more efficient to choose a base that provides quick access to multiple potential project areas. Even if this increases the length of individual ferry flights, it improves the likelihood that at least one area will have suitable conditions.
Optimize the Flight Pattern
The structure of the flight pattern has a strong influence on passive time. Longer flight lines reduce the number of turns, and fewer turns reduce the cumulative time spent slowing down, aligning and accelerating again. Whenever possible, align the pattern with the longest dimension of the project area. In some cases, it is more efficient to combine several smaller areas of interest into a single block rather than creating separate patterns for each one. This reduces repositioning and helps maintain a continuous workflow.
Plan the Survey with Local Air Traffic Control
Early coordination with local air traffic control can prevent avoidable delays. Sharing the area of interest, the planned flight pattern, expected altitudes and the approximate duration of each flight allows controllers to plan ahead. With this information, they can route other traffic around the survey area and reduce the likelihood of airborne holds or interruptions. This preparation is especially valuable in controlled or busy airspace.
Conclusion
Survey efficiency depends on how much of a flight can be used for collecting usable data and how much time is lost to transitions, waiting or operational constraints. By separating active and passive time, it becomes easier to understand where flying hours are spent and which parts of a mission can be influenced through planning. Factors such as transit distance, flight line layout, ground operations and coordination with air traffic control all contribute to the overall balance. No survey project is the same and efficiency factors will vary. But measuring your active and passive flight time can help take actions for upcoming projects to design missions that make better use of available aircraft time and to plan projects with greater confidence and predictability.
